HRC 60 Powdered Metal Gears Density 6.5g/Cm3 For Automotive Subassemblies

Brand Name : SFT

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Density : 6.5-7.2

Color : Black

Hardness : 60-90

Application : Machinery Parts

Size : According to Your Requirement

Material capabilities : Precious Metals

Contact Now

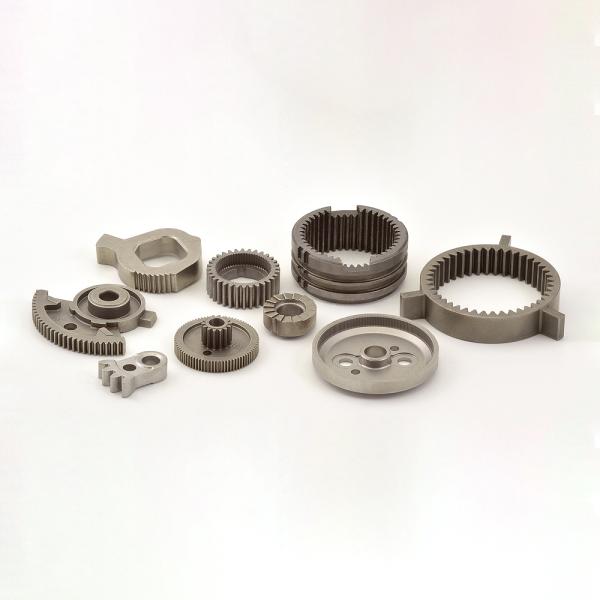

Powder metal products for small gears and miniature components

powder metal products for small applications, including small gears and miniature components for planetary drives, automotive sub-assemblies, drills, and electronics, and in particular, small components and assemblies for medical devices.

Specialists in stainless steel and material blending, SFT provides you with technical expertise and the ability to discover a cost effective solution that maintains the integrity of your design.

The benefits of powder metal products include:

High Quality, High Strength Small Metal Parts to Precision Tolerances.
Up to 70% Cost Savings over Other Processes.
Repetitive Accuracy.
Dimensional Accuracy.
Ability to Tailor Material to Be Ductile or Hard.
Ability to Blend Materials to Gain Desirable Properties.
Corrosion Resistance.
Scrap-Free, Environmentally “Green” Manufacturing Process.

Performance of Oil Bearing

(1)Performance of oil bearing (copper based & iron based)

No.	Features
No.	Illustrate	Unit	Copper based	Copper & iron based	Iron based
1	Density	g/cm3	6.5-7.2	6.0-6.7	5.9-6.5
2	Surface porosity	/	After heated in lubricating oil from the sliding surface
3	Noise (distance 50 mm)	db	below 20
4	Abrasion loss	m	below 15
5	Oil Content Rate	V%	above 18
6	Pressure stains strength	Mpa	above 150	above 250	above 280
7	Hardness	MHV	60-90	60-90	60-110
8	Friction coefficient	/	below 0.15	below 0.25	below 0.25
9	Life	h		above 2000

(2) Performance of structuralparts (copper based & iron based)
No.	Cu	Ni	Mo	C	Fe	Density g/cm3	Tensile strength Mpa	Elongation %	Hardness HB	Perfect for
1	＜1	/	/	＜0.3	other	6.4-6.8	150	4	＞45	Low load structure
2	1-5	/	/	＜0.3	other	6.4-6.8	200	3	＞55	Middle load structure
3	1-5	/	/	＜0.3	other	6.8-7.2	300	7	＞80	High load structure, can carburizing heat treatment
4	1-3	1-5	＜0.8	0.3-0.6	other	6.8-7.2	600	2	＞160	Upper load structure, can heat treatment
5	3-5	1-5	＜0.8	0.3-0.6	other	7.2-7.4	700	2	＞180	Higher load structure, can heat treatment

Dimensions and Capacities

Type	Max.Torque (N.m)	Nominal Overrunning Drag(N.m)	Max. Overrunning (r/min)		Max. Indexing (cycle/min)	Stock Bore Size
Type	Max.Torque (N.m)	Nominal Overrunning Drag(N.m)	Inner Race	Outer Race	Max. Indexing (cycle/min)	Dia (H7)	Keyway
MZ15	186	0.20	1800	900	150	15	5×2.3
MZ17	215	0.20	1700	800	150	17	5×2.3
MZ20	323	0.29	1600	700	150	20	6×2.8
MZ30-22	735	0.39	1500	500	150	22	6×2.8
MA30-25						25	8×3.3
MZ30						30	10×3.3
MZ35	1080	0.49	1400	300	150	35	10×3.3
MZ45-40	1620	0.69	1400	300	150	40	12×3.3
MZ45	1620	0.69	1400	300	150	45	14×3.8
MZ60-50	2110	0.98	1200	250	150	50	14×3.8
MZ60-55						55	16×4.3
MZ60						60	18×4.4
MA70-65	3040	1.27	1100	250	150	65	18×4.4
MA70	3040	1.27	1100	250	150	70	20×4.9
